Products Description
UV LED - 5mm 320-390nm Through Hole UV UVA LED Sensor Special wavelength
US$ 0.50
Product Attribute
Mounting Type:
indoor/outdoor
Model Number:
XL1206UVC420
Brand Name:
szsealand
Description:

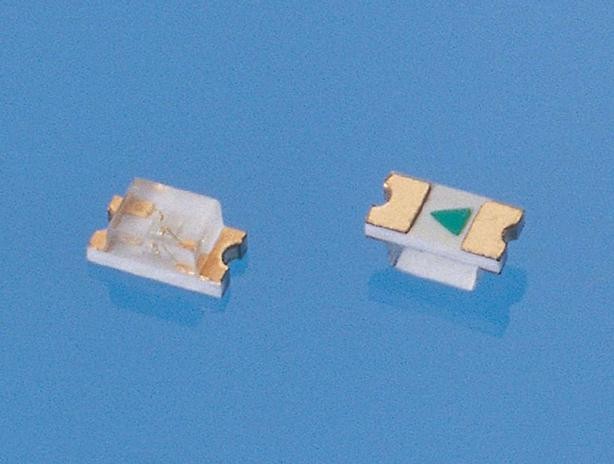

1206 420nm UV LED
Type:
LED
Place of Origin:
Guangdong, China
Package Type:
Surface Mount
Package / Case:
silicone
D/C:
XL1206UVC420
Application:
systerm
Supplier Type:
Original Manufacturer, ODM
Media Available:
Datasheet, Photo
Max. Forward Voltage:
3.4v
Max. Reverse Voltage:
5v
Max. Forward Current:
20mA
Max. Reverse Current:
5uA
Diode Type:
SMD
Technology:
SMT
Voltage - Peak Reverse (max):
5V
Current - Average Rectified (Io):
20mA
Voltage - Forward (Vf) (Max) @ If:
3.0-3.6v
Current - Reverse Leakage @ Vr:
0-5uA
Diode Configuration:
one 12mil chip
Voltage - DC Reverse (Vr) (Max):
5v
Current - Average Rectified (Io) (per Diode):
20mA
Speed:
Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):
30ns
Capacitance @ Vr, F:
100pF
Current - Max:
30mA
Resistance @ If, F:
0
Power Dissipation (Max):
0.06w
Capacitance Ratio:
0
Capacitance Ratio Condition:
0
Q @ Vr, F:
20 @3. 4V, 50MHz
Configuration:
one chip
Voltage - Zener (Nom) (Vz):
0
Power - Max:
0.06w
Impedance (Max) (Zzt):
0
Emitting color:
purple
Size:
1.6*0.8mm
Wavelength:
420-425-430nm
Viewing angle:
120Degree
Shape:
Square
Description:
1206 420nm UV LED
Operating Temperature:
255degree
Mounting Type:
SMT
Packaging and delivery
Selling Units:
Single item
Single package size:
35X35X10 cm
Single gross weight:
0.002 kg
More
Sample Policy:
Free samples are available
