Products Description

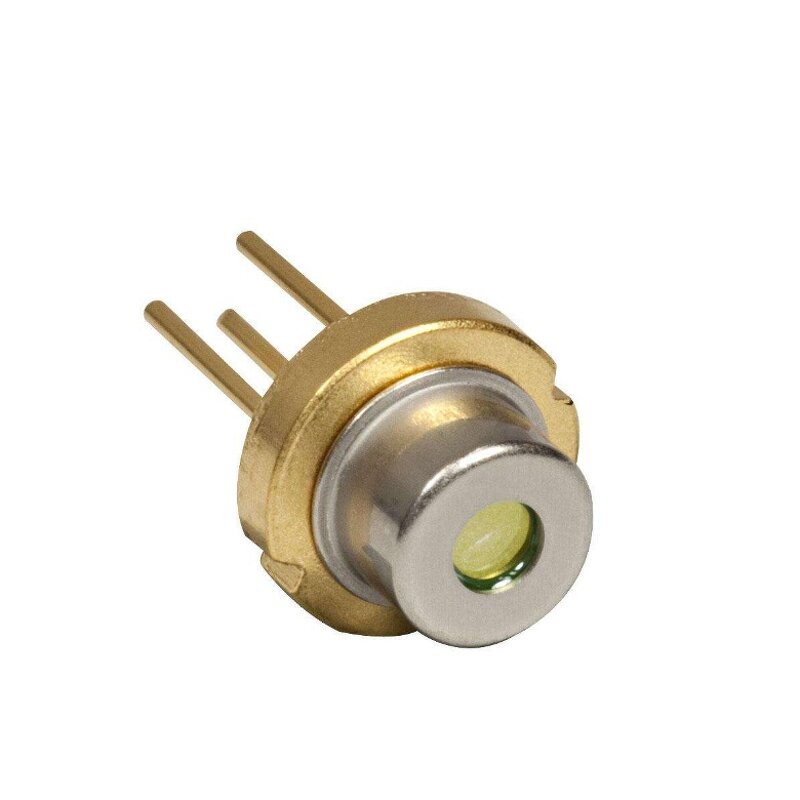

650nm Red Laser Diode 10mw Laser Diode for Medical Devices
US$ 1.50
Product Attribute
Mounting Type:
Welding, soldering
Model Number:
Starsealand
Brand Name:
Starsealand
Description:
standard
Type:
Laser Diode
Place of Origin:
guangdong china
Package Type:
Through Hole
Package / Case:
TO 56
D/C:
37
Application:
lighting
Supplier Type:
ODM, Agency, Retailer, Other
Cross Reference:
37
Media Available:
Datasheet, Photo
Max. Forward Voltage:
6V
Max. Reverse Voltage:
5V
Max. Forward Current:
1.2mA
Max. Reverse Current:
5uA
Diode Type:
TO 56
Technology:
semiconductor
Voltage - Peak Reverse (max):
2v
Current - Average Rectified (Io):
30mA
Voltage - Forward (Vf) (Max) @ If:
standard
Current - Reverse Leakage @ Vr:
standard
Diode Configuration:
standard
Voltage - DC Reverse (Vr) (Max):
2v
Current - Average Rectified (Io) (per Diode):
30mA
Reverse Recovery Time (trr):
standard
Capacitance @ Vr, F:
standard
Current - Max:
40mW
Resistance @ If, F:
standard
Power Dissipation (Max):
12mW
Capacitance Ratio:
standard
Capacitance Ratio Condition:
standard
Q @ Vr, F:
Not Applicable
Configuration:
standard
Voltage - Zener (Nom) (Vz):
standard
Tolerance:
standard
Power - Max:
12mW
Impedance (Max) (Zzt):
standard
Material:
metal
Wavelength:
650nm
Packing type:
Through Hole
Max forward voltage:
6v
Max reverse voltage:
5v
Operation current:
1.2mA
Storage Temperature:
-15~85°C

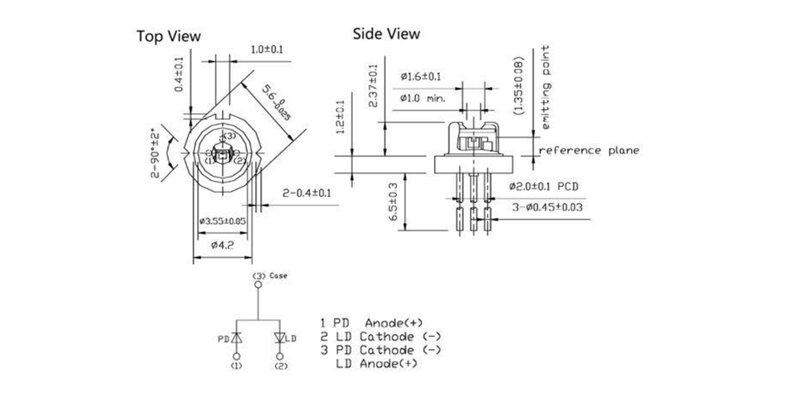

Dimension:
3.5*5.6mm
Output Power:
10mW
Operating Temperature:
-10~60°C, -10~40°C
Packaging and delivery
Selling Units:
Single item
Single package size:
10.0X10.0X5.0 cm
Single gross weight:
0.500 kg
More
Sample Policy:
Free samples are available
650nm Red Laser Diode 10mw Laser Diode for Medical Devices
