Products Description

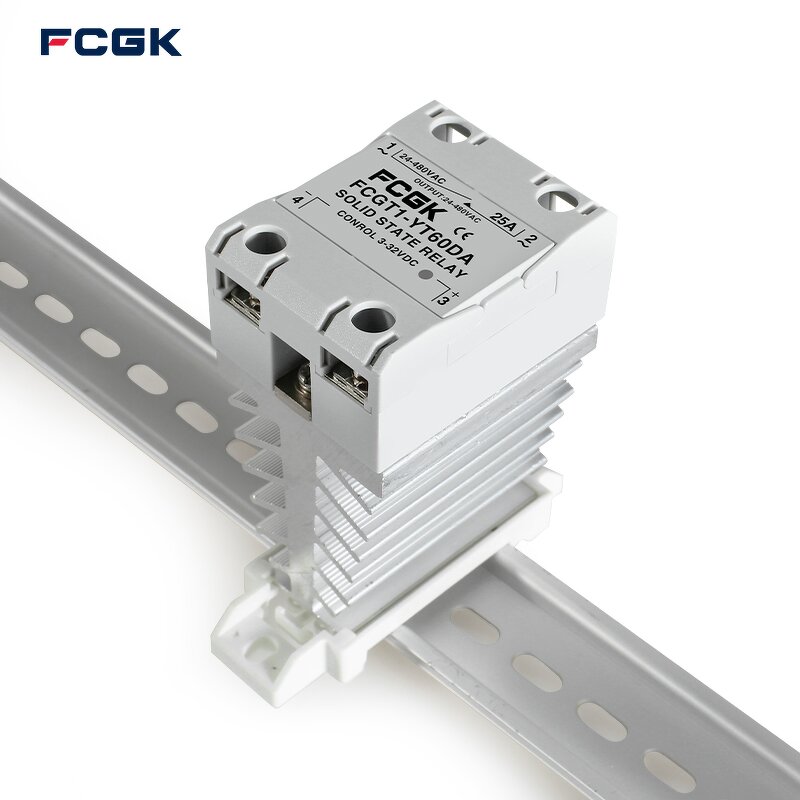

FCGK Sealed Miniature Solid State Slim SSR DIN Relay Module - 10A-120A 24-220V AC/DC
Quantity
FOB Price
≥1000
US$ 1.99
300–999
US$ 2.5
≤299
US$ 2.9
Product Attribute
Contact Form:
1NC
Contact Load:
Low Power
Max. switching current:
100 A
Place of Origin:
Zhejiang, China
Model Number:
FCGT1-FxxDA48
Brand Name:
FCGK
Max. switching voltage:
480 V
Power Source:
AC/DC
Protect Feature:
Sealed
Size:
Miniature
Terminal Shape:
Screw Terminal
Theory:
Solid State Relay
application:
General Purpose
Load Current:
10A 25A 40A 60A 80A 100A 120A
Load Voltage:
24-480VAC
Control Voltage:
3-32VDC,70-280AC
Control current:
DC3-25mA
On Voltage:
≤1.5V
Off Leakage Current:
≤2mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Ambient temperature:
-30 ~+75℃
Weight:
315g
Packaging and delivery
Selling Units:
Single item
Single package size:
90X30X122 cm
Single gross weight:
0.350 kg
