Products Description

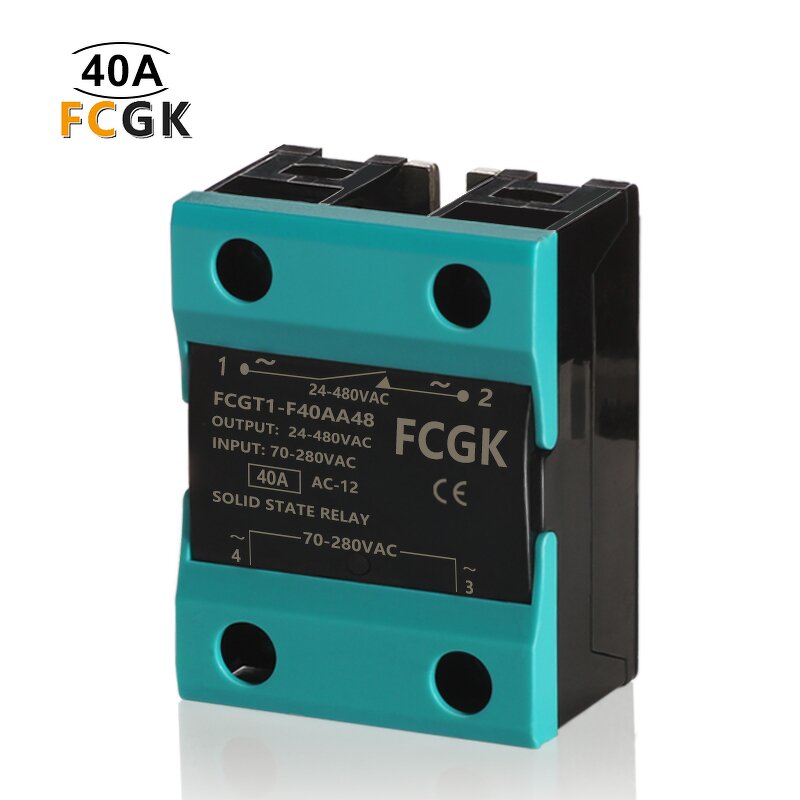

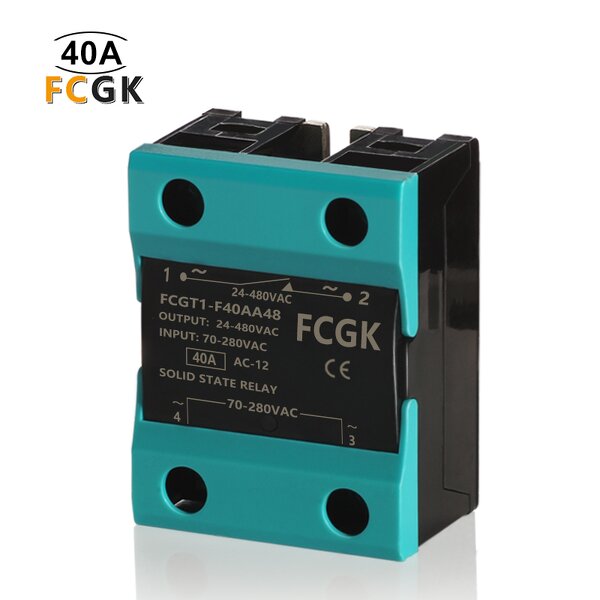

High Voltage 250V AC Single Phase Solid State Relay - 24-240VAC-40A Input Miniature
Quantity
FOB Price
≥500
US$ 4.48
200–499
US$ 4.7
≤199
US$ 4.8
Product Attribute
Contact Load:
High Power
Rated Current:
Other
Place of Origin:
Zhejiang, China
Model Number:
FCGT1-F40AA48
Brand Name:
FCGK
Protect Feature:
Sealed
Size:
Miniature
Terminal Shape:
Screw Terminal
Theory:
Solid State Relay
application:
General Purpose
Load Current:
40A
Load Voltage:
24-600VAC
Control Voltage:
70-280VAC
Control current:
AC≤12mA
On Voltage:
≤1.5V
Off Leakage Current:
≤2mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Insulation Resistance:
1000MΩ
Ambient temperature:
-30 ~+75℃
Packaging and delivery
Selling Units:
Single item
Single package size:
11.3X4.5X3.1 cm
Single gross weight:
0.400 kg
More
Sample Policy:
Free samples are available
High Voltage 250V AC Single Phase Solid State Relay - 24-240VAC-40A Input Miniature
