Products Description

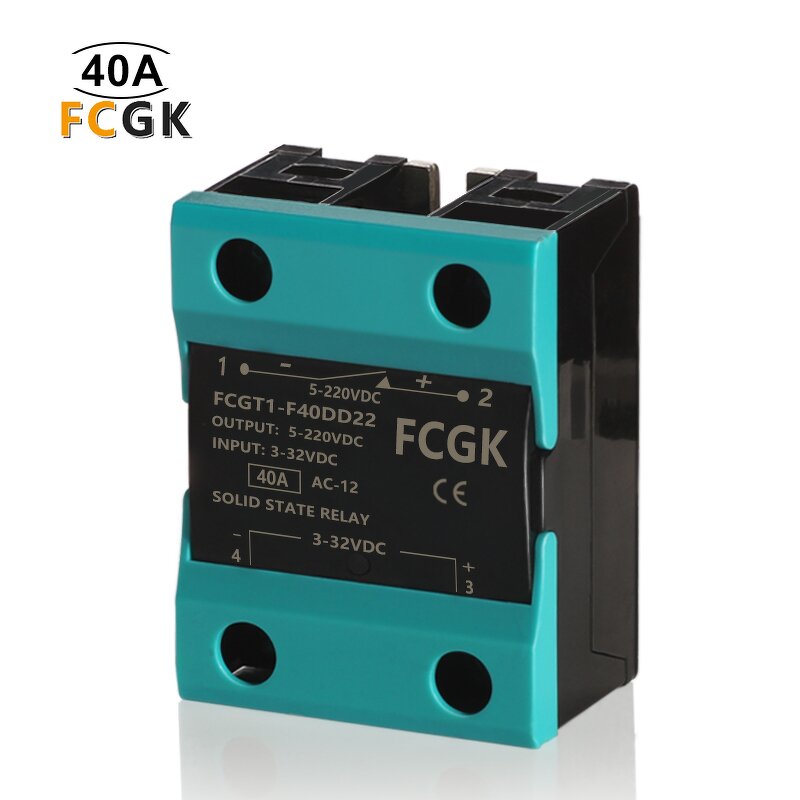

SSR-40DD Solid State Relay - DC to DC Single Phase 40A Miniature 220V
Quantity
FOB Price
≥500
US$ 2.82
200–499
US$ 2.99
≤199
US$ 3.32
Product Attribute
Contact Load:
High Power
Place of Origin:
Zhejiang, China
Model Number:
FCGT1-F40DD22
Brand Name:
FCGK
Protect Feature:
Sealed
Size:
Miniature
Theory:
Solid State Relay
application:
General Purpose
Load Current:
40A
Load Voltage:
5-220VDC
Control Voltage:
3-32VDC
Control current:
DC5-25mA
On Voltage:
≤1.5V
Off Leakage Current:
≤2mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Insulation Resistance:
1000MΩ
Ambient temperature:
-30 ~+75℃
Packaging and delivery
Selling Units:
Single item
Single package size:
11.3X4.5X3.1 cm
Single gross weight:
0.400 kg
More
Sample Policy:
Free samples are available
SSR-40DD Solid State Relay - DC to DC Single Phase 40A Miniature 220V
