Products Description

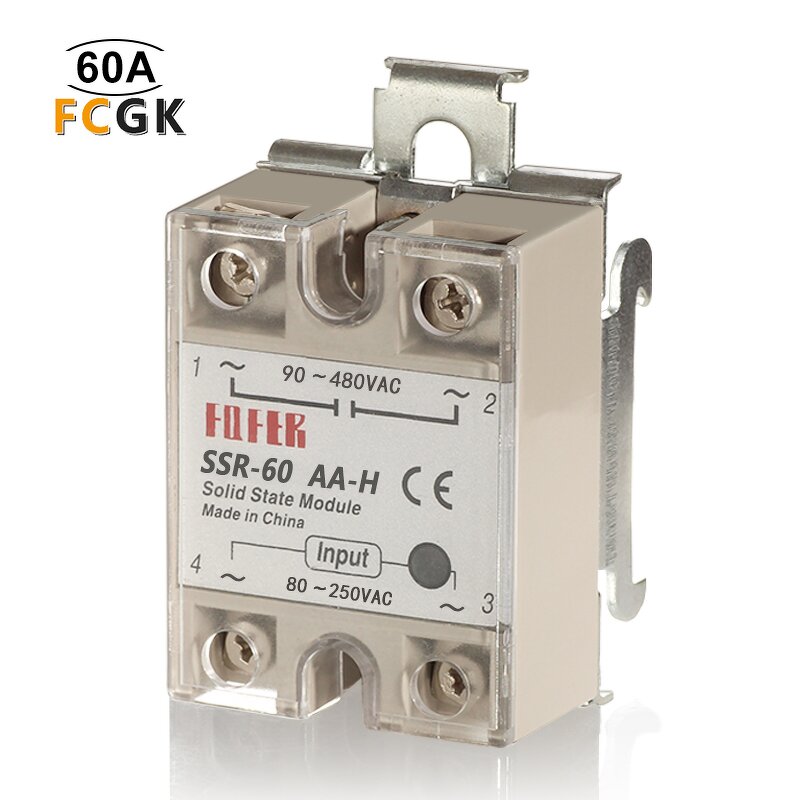

Fortek 60A Solid State Relay - Single Phase High Power Miniature AC/AC Sealed
Quantity
FOB Price
≥500
US$ 3.17
200–499
US$ 3.39
≤199
US$ 3.5
Product Attribute
Contact Load:
High Power
Place of Origin:
Zhejiang, China
Model Number:
SSR-60AA-H
Brand Name:
FCGK
Protect Feature:
Sealed
Size:
Miniature
Theory:
Solid State Relay
application:
General Purpose
Load Current:
60A
Load Voltage:
90-480VAC
Control Voltage:
80-250VAC
Control current:
AC ≤ 12mA
On Voltage:
≤1.5V
Off Leakage Current:
≤2mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Insulation Resistance:
1000MΩ/500VDC
Ambient temperature:
-30 ~+75℃
Packaging and delivery
Selling Units:
Single item
Single package size:
11.3X4.5X3.1 cm
Single gross weight:
0.500 kg
More
Sample Policy:
Free samples are available
Fortek 60A Solid State Relay - Single Phase High Power Miniature AC/AC Sealed
