Products Description

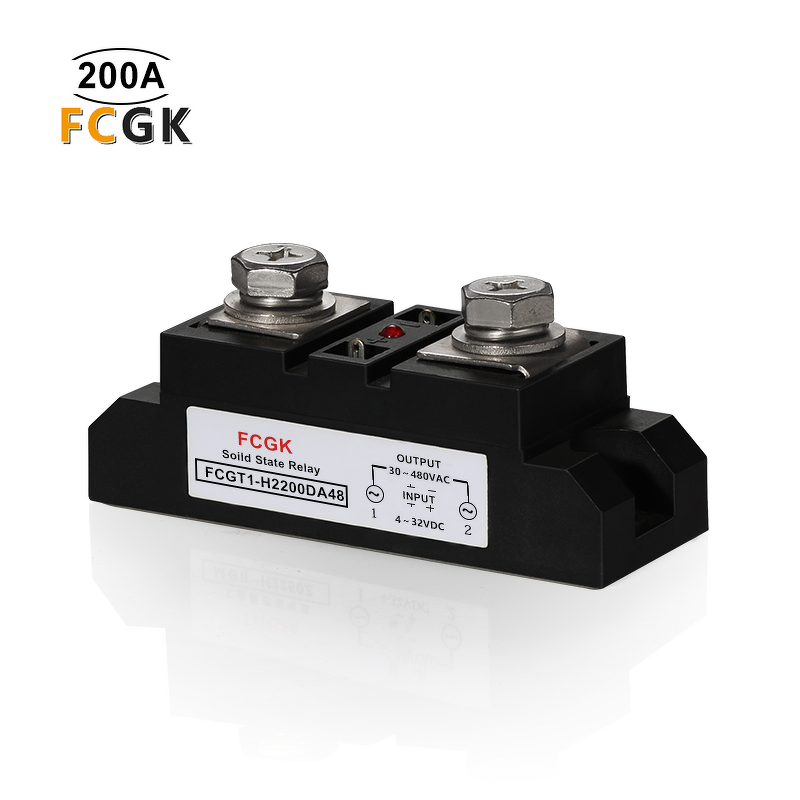

FCGK 200A High-Current Industrial Solid State Relay - DC 200A Control Miniature
Quantity
FOB Price
≥500
US$ 11.45
200–499
US$ 11.75
≤199
US$ 13.05
Product Attribute
Contact Load:
High Power
Place of Origin:
Zhejiang, China
Model Number:
FCGT-H2200DA48
Brand Name:
FCGK
Protect Feature:
Sealed
Size:
Miniature
Theory:
Solid State Relay
application:
General Purpose
Load Current:
200A
Load Voltage:
30-480VAC
Control Voltage:
4-32VDC
Control current:
10-68mA
On Voltage:
≤1.8V
Off Leakage Current:
≤10mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Insulation Resistance:
1000MΩ/500VAC
Ambient temperature:
-30~+75℃
Packaging and delivery
Selling Units:
Single item
Single package size:
11.4X6X5 cm
Single gross weight:
0.500 kg
More
Sample Policy:
Free samples are available
FCGK 200A High-Current Industrial Solid State Relay - DC 200A Control Miniature
