Products Description

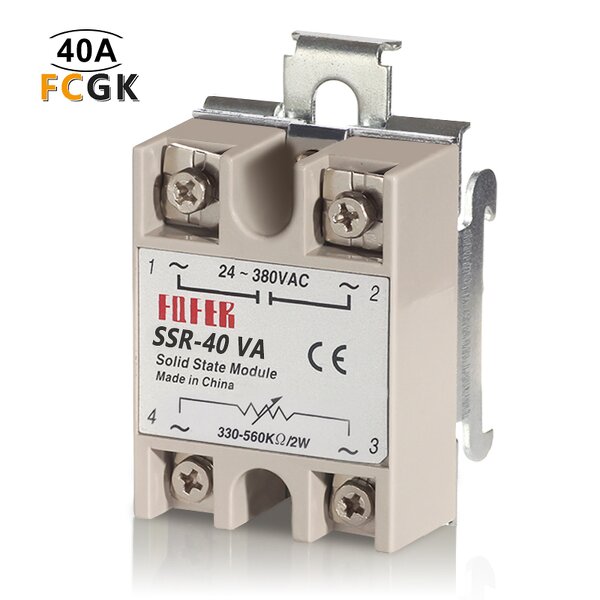

Fotek SSR-40VA Solid State Relay - 40A Variable Resistor High Power Miniature
Quantity
FOB Price
≥500
US$ 1.95
200–499
US$ 2
≤199
US$ 2.15
Product Attribute
Contact Load:
High Power
Place of Origin:
Zhejiang, China
Model Number:
SSR-40VA
Brand Name:
FCGK
Protect Feature:
Sealed
Size:
Miniature
Theory:
Solid State Relay
application:
General Purpose
Load Current:
40A
Load Voltage:
0-380VAC
Control Voltage:
470KΩ/2W(Resistor Regulator)
Control current:
/
On Voltage:
≤1.5V
Off Leakage Current:
≤2mA
On-off Time:
/
Dlelectric Stength:
2500VAC
Insulation Resistance:
1000MΩ/500VDC
Ambient temperature:
-30 ~+75℃
Packaging and delivery
Selling Units:
Single item
Single package size:
11.3X4.5X3.1 cm
Single gross weight:
0.500 kg
More
Sample Policy:
Free samples are available
Fotek SSR-40VA Solid State Relay - 40A Variable Resistor High Power Miniature
