Products Description

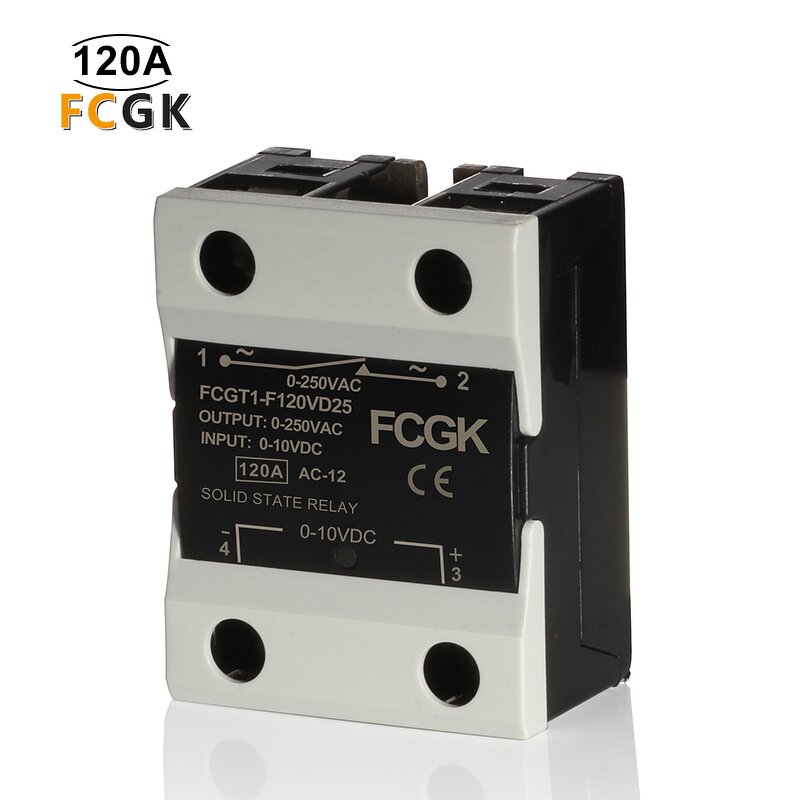

FCGK 120A Single-Phase Solid State Relay - 0-10VDC Input 120A 0-250VAC Miniature
Quantity
FOB Price
≥5000
US$ 7.1
2000–4999
US$ 7.4
10–1999
US$ 8
Product Attribute
Contact Load:
High Power
Rated Current:
Other
Place of Origin:
Zhejiang, China
Model Number:
FCGT1-F120VD25
Brand Name:
FCGK
Protect Feature:
Sealed
Size:
Miniature
Terminal Shape:
Screw Terminal
Theory:
Solid State Relay
application:
General Purpose
Load Current:
120A
Load Voltage:
0-250VAC
Control Voltage:
0-10VDC
Control current:
DC 1-10mA
On Voltage:
≤1.5V
Off Leakage Current:
≤2mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Insulation Resistance:
1000MΩ
Ambient temperature:
-30 ~+75℃
Packaging and delivery
Selling Units:
Single item
Single package size:
11.3X4.5X3.1 cm
Single gross weight:
0.200 kg
More
Sample Policy:
Free samples are available
FCGK 120A Single-Phase Solid State Relay - 0-10VDC Input 120A 0-250VAC Miniature
