Products Description

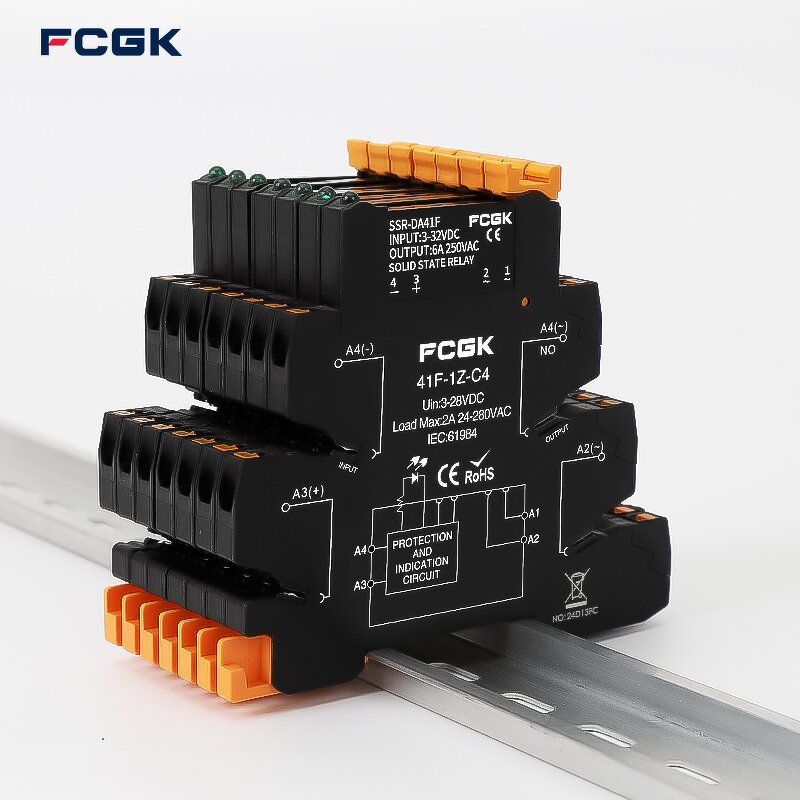

FCGK 280VAC Slim SSR Solid State Relay - DC to AC 41F-1Z-DA C2 5-24V 2A/6A
US$ 2.40
Product Attribute
Contact Form:
1NC
Contact Load:
Low Power
Max. switching current:
20A
Rated Current:
Other
Place of Origin:
Zhejiang, China
Model Number:
41F-1Z-C4-DA or 41F-1Z-C4-DD
Brand Name:
FCGK
Contact Material:
Copper
Max. switching voltage:
240 V, 60 V
Pins:
2P
Power Source:
DC
Protect Feature:
Sealed
Size:
Miniature
Terminal Shape:
Screw Terminal
Theory:
Solid State Relay
application:
General Purpose
Actual load current:
3A
Load Voltage:
24-280VAC or 5-60VDC
Control Voltage:
3-32VDC
Control current:
DC3-25mA
On Voltage:
≤1.5V
Off Leakage Current:
≤2mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Ambient temperature:
-30 ~+75℃
Weight:
100g
Packaging and delivery
Selling Units:
Single item
Single package size:
12X10X1.5 cm
Single gross weight:
0.100 kg
More
Sample Policy:
Free samples are available
FCGK 280VAC Slim SSR Solid State Relay - DC to AC 41F-1Z-DA C2 5-24V 2A/6A
