Products Description

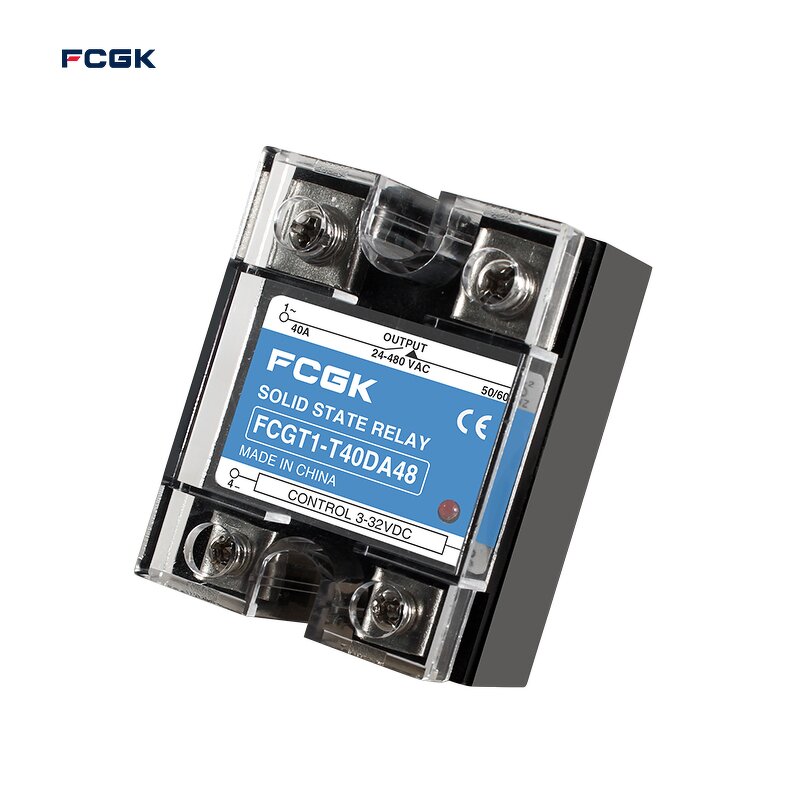

FCGK Sealed Transparent Miniature SSR-10A Solid State Relay - 25A to 120A Single Phase
Quantity
FOB Price
≥5000
US$ 1.6
1000–4999
US$ 2.1
30–999
US$ 2.5
Product Attribute
Contact Form:
1NC
Contact Load:
Low Power
Max. switching current:
100 A
Rated Current:
Other
Place of Origin:
Zhejiang, China
Model Number:
FCGK1-T40DA48
Brand Name:
FCGK
Max. switching voltage:
480 V
Power Source:
DC
Protect Feature:
Sealed
Size:
Miniature
Terminal Shape:
Screw Terminal
Theory:
Solid State Relay
application:
General Purpose
Load Current:
10-120A
Load Voltage:
24-480VAC
Control current:
3-32VDC
On Voltage:
≤1.5V
Off Leakage Current:
≤2mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Ambient temperature:
-30 ~ +75℃
Insulation Resistance:
1000M MΩ/500VDC
Weight:
120g
Packaging and delivery
Selling Units:
Single item
Single package size:
8X7X4 cm
Single gross weight:
0.120 kg
More
Sample Policy:
Free samples are available
FCGK Sealed Transparent Miniature SSR-10A Solid State Relay - 25A to 120A Single Phase
