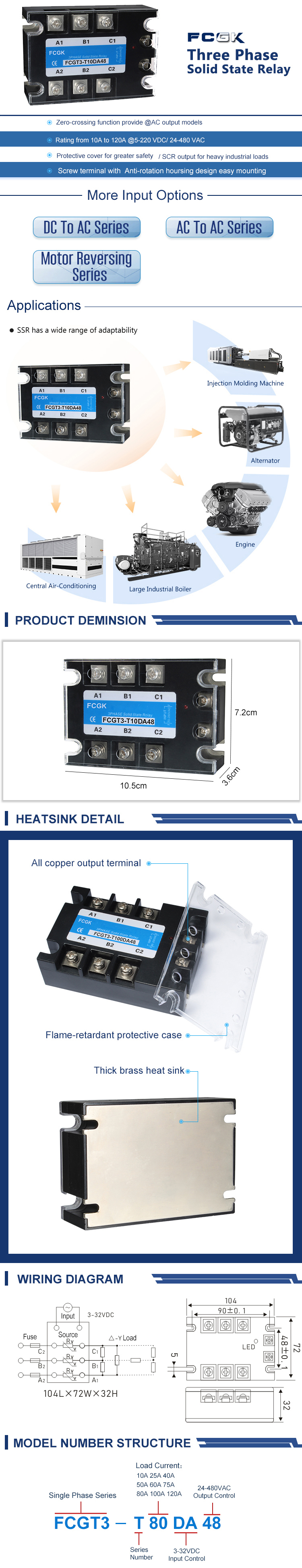

Products Description

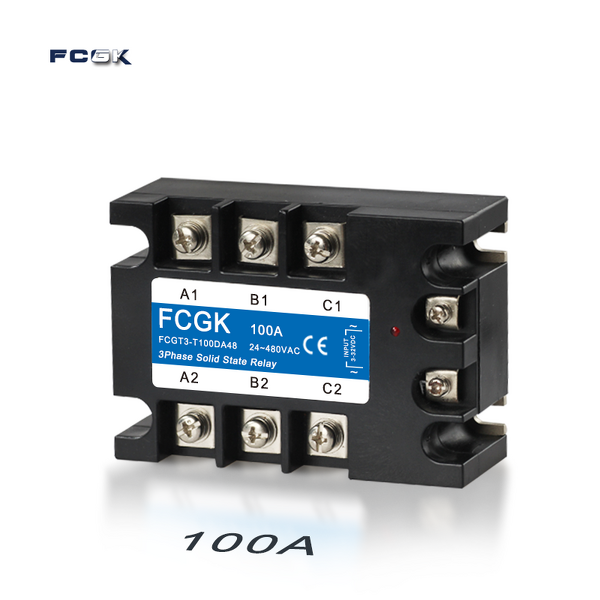

3 Phase Heat Sink SSR - Three Phase 10A to 120A DC 3-32V Output AC 24-480V
Quantity
FOB Price
≥500
US$ 5.9
200–499
US$ 6.5
≤199
US$ 6.9
Product Attribute
Contact Load:
Low Power
Max. switching current:
100 A
Rated Current:
Other
Place of Origin:
Zhejiang, China
Model Number:
FCGT3-T100DA48
Brand Name:
FCGK
Max. switching voltage:
480 V
Power Source:
AC/DC
Protect Feature:
Sealed
Size:
Miniature
Terminal Shape:
Screw Terminal
Theory:
Solid State Relay
application:
General Purpose
Load Current:
10A,25A,40A,50A,60A,75A,80A,90A,100A,120A
Load Voltage:
24-480VAC
Control Voltage:
3-32VDC,70-280VAC
Control current:
10-68mA
On Voltage:
≤1.8V
Off Leakage Current:
≤10mA
On-off Time:
≤10mS
Dlelectric Stength:
2500VAC
Ambient temperature:
-30~+75℃
Weight:
450g
Packaging and delivery
Selling Units:
Single item
Single package size:
12.4X9.2X5.5 cm
Single gross weight:
0.600 kg
More
Sample Policy:
Free samples are available
3 Phase Heat Sink SSR - Three Phase 10A to 120A DC 3-32V Output AC 24-480V
