Products Description

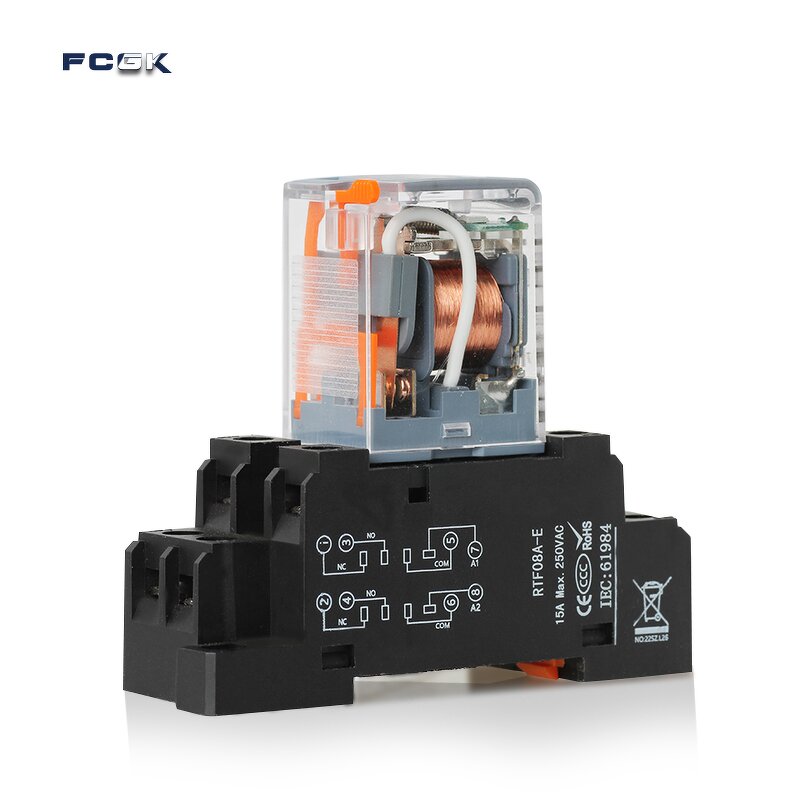

RYF08A-E Miniature Electromagnetic Relay - 30V DC 8 Pin Control 15A 250VAC High Power
Quantity
FOB Price
≥1000
US$ 1.93
500–999
US$ 2.12
10–499
US$ 2.23
Product Attribute
Contact Load:
High Power
Place of Origin:
Zhejiang, China
Model Number:
RYF08A-E
Brand Name:
FCGK
Protect Feature:
Sealed
Size:
Miniature
Theory:
Electromagnetic Relay
application:
General Purpose
Product name:
Relay
Contact form:
2N 4N
Contact Load:
15A/250VAC/30VDC
Contact resistance:
≤50mΩ
Contact material:
Ag alloy
Electrical life:
1x10^5
Insulation resistance:
1000mΩ(500VDC)
Ambient temperature:
--40~+70℃
Coil power:
DC(0.9W) AC(1.2VA)
environment humidity:
5%~85%RH
Packaging and delivery
Selling Units:
Single item
Single package size:
11.4X9X5 cm
Single gross weight:
0.500 kg
More
Sample Policy:
Free samples are available
RYF08A-E Miniature Electromagnetic Relay - 30V DC 8 Pin Control 15A 250VAC High Power
